Understanding when to use geometry-first reconstruction versus appearance-first capture The...
When you don't have the CAD, or when as-built reality is what matters
It's the biggest problem in visualization: You need a digital twin of your facility, product, or site, but you don't have CAD models. Or the ones you have are outdated, incomplete, or never captured what was actually built.
This is where photogrammetry comes in. It's a proven method that turns ordinary photographs into accurate 3D models of real-world objects and environments. No specialized sensors required. No need to start from scratch in CAD. Just capture what already exists.
While newer AI-driven methods like Neural Radiance Fields are emerging, photogrammetry remains the practical foundation for most reality capture workflows today. It's cost-effective, well-understood, and produces results you can use immediately in everything from Unreal Engine to your existing design tools.
Two Paths to Digital Twins
For business leaders, photogrammetry is the foundation of a reality-first digital twin strategy. While a design-first digital twin begins with CAD or BIM models to simulate a future product or environment, a reality-first digital twin captures an existing object, site, or structure directly from images. The former predicts what will be built; the latter documents what already exists.
Photogrammetry powers the second type, enabling inspection, preservation, and integration into virtual workflows. Unlike design-first twins that originate from CAD or BIM models, photogrammetry captures the as-built state of the world. It doesn't predict; it measures. This makes it indispensable for industries where the physical environment evolves faster than the design documentation.
The Photogrammetry Pipeline

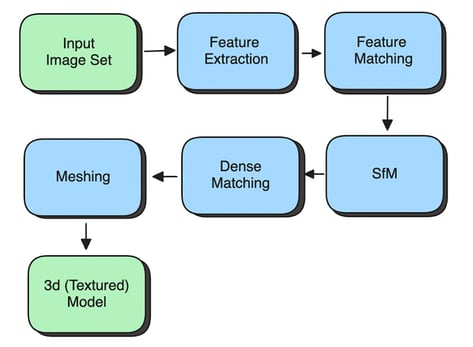

The following diagram illustrates the broad stages of a photogrammetry workflow. Different tools use slightly different terminology or internal methods, but conceptually the process follows this same structure.
When Photogrammetry Is the Right Tool
Photogrammetry has become a foundation of digital twin strategies across multiple sectors. The advantage lies in its ability to capture reality when CAD models don't exist, are outdated, or simply can't capture the organic complexity of the real world.
Architecture & Real Estate - Capturing built environments for visualization and renovation. When you need to document an existing building that predates BIM, or when tenant improvements require accurate as-built documentation, photogrammetry delivers measurable models from simple photography.
Manufacturing & Retail - Creating photorealistic product twins for AR/VR and configurators. Physical products need to be digitized for e-commerce visualization, virtual try-on, or configurator tools. Photogrammetry captures these objects with photorealistic texture that CAD models struggle to replicate.
Cultural Heritage - Digitally preserving artifacts, monuments, and historical sites. Objects that were never designed in CAD (ancient ruins, sculptures, archaeological sites) can only be captured from reality. Photogrammetry provides the primary means of creating digital preservation records.
Surveying & Infrastructure - Mapping terrain or construction progress using UAVs. Natural landscapes, earthwork, and construction sites change continuously. Photogrammetry captures these dynamic environments, providing time-stamped digital twins that track progress against design intent.
In all these cases, the advantage lies in cost-effective scalability. Once you've captured enough images, the rest is software. The result can be visualized directly in engines like Unreal Engine 5, allowing physically based rendering, lighting control, and integration with metaverse or simulation environments.
The Practical Advantages
Its advantages are both practical and strategic. Once imagery is collected, the rest is automated through software. Open-source and commercial tools now make it possible for anyone to create metrically accurate models from off-the-shelf cameras. The result can be visualized in 3D engines, CAD platforms, or simulation systems, providing a foundation for decision-making, design validation, and AI-driven analysis.
In practice, photogrammetry lets us take a sequence of ordinary images and reconstruct the geometry of a real object, room, or landscape. Whether you're building a scene for a film, creating a virtual showroom for a furniture brand, or capturing construction progress from a drone, this process underpins much of what we now call reality capture.
When people think of images, we typically think in terms of RGB, but we can also work with multi-spectral imagery (e.g. near infrared). This allows us to extend beyond what's visible to the human eye, making photogrammetry not just a tool for realism, but for analysis: capturing surfaces, materials, and even environmental change.
Understanding the Limitations
Photogrammetry, for all its power, is not a magic wand. Several well-known constraints persist:
Reflective or Transparent Surfaces: Mirrors, glass, or polished metal introduce false correspondences because reflections move with viewpoint.
Lighting Is Baked In: The captured texture maps contain the lighting from the original scene. Changing illumination in a game engine won't look natural without re-texturing or material correction.
Scale Ambiguity: Unless at least one dimension or GPS reference is known, absolute scale must be imposed manually.
Computation: Dense reconstruction is computationally intensive; processing hundreds of images can take hours without a GPU (and sometimes with, if you are processing aerial surveys).
Occlusion: Hidden areas simply don't exist in the dataset. No algorithm can reconstruct what the camera never saw.
These limitations explain why the field is evolving toward neural representations. Instead of explicitly reconstructing surfaces and textures, newer methods like NeRFs and Gaussian Splatting learn continuous representations of light and geometry that can be re-lit, re-viewed, and rendered in real time.
Photogrammetry vs LiDAR: Another Strategic Choice
Photogrammetry and LiDAR both generate 3D data, but they differ fundamentally in how they observe the world.
| Category | Photogrammetry | LiDAR |
|---|---|---|
| Capture Type | Passive (uses ambient or captured light) | Active (emits and measures laser pulses) |
| Output | Colorized meshes or point clouds | Geometrically precise point clouds |
| Accuracy | Depends on camera calibration and overlap. You can improve with ground control points and RTK (but this adds to cost and complexity). | Millimeter-level range accuracy |
| Surface Types | Struggles with transparent/reflective surfaces | Handles non-reflective surfaces well |
| Texture | True-color texture from imagery | Intensity or false color |
| Cost | Low, uses consumer cameras | Higher, specialized hardware |
| Use Case | Visual realism, digital twins, entertainment | Surveying, engineering, forestry, mapping |
In practice, the two are often combined. LiDAR captures precise geometry; photogrammetry provides realistic texture. Modern tools support fusing LiDAR with imagery, yielding both precision and photorealism.
Combining CAD + Photogrammetry with OpenUSD
The real power emerges when you combine design-first CAD models with reality-first photogrammetry. OpenUSD provides the framework to bring these worlds together, allowing you to overlay high-precision CAD geometry with photogrammetric texture and as-built documentation in a single coordinate system.
Your mechanical components maintain parametric accuracy from CAD, while surrounding context, wear patterns, and environmental details come from photogrammetry. USD's scene composition makes it possible to validate design against reality, track construction progress, or create hybrid digital twins that combine engineering precision with visual fidelity.
Managing Mixed-Source Workflows
The technical pattern mirrors what NVIDIA describes in their CAD-to-USD workflows: using Payloads and References to create a layered asset structure where CAD geometry and photogrammetric captures remain as separate, manageable layers that compose into a unified scene.
In practice, this means:
Layer Structure: Create an interface layer (a lightweight USD file) that uses Payloads to reference both your CAD geometry layer and your photogrammetry layer. This keeps heavy data unloaded until needed, critical for performance at scale.
Coordinate Alignment: Both CAD and photogrammetry data must be brought into a common coordinate system. Ground control points, surveyed reference geometry, or known dimensions from the CAD model help establish this alignment.
Material Normalization: CAD exports typically arrive with simple display colors or basic materials, while photogrammetry bakes lighting into diffuse textures. Normalizing these into a unified MaterialX or OpenPBR workflow ensures visual consistency, particularly when the digital twin needs to be re-lit or rendered in different contexts.
The Transcoding Fingerprint: Each format conversion leaves artifacts. CAD-to-USD conversions may introduce naming prefixes or optimized instancing. Photogrammetry-to-USD conversions carry baked lighting and may need mesh decimation. Understanding these "fingerprints" helps you manage expectations and build robust pipelines.
Performance Optimization: Both CAD geometry and photogrammetric meshes tend to be dense. USD's variant sets allow you to maintain multiple fidelity levels (high-res for close inspection, decimated for real-time navigation), while Payloads ensure heavy geometry only loads when needed.
This hybrid approach is particularly valuable in construction validation, facility management, and manufacturing inspection, where design intent must be continuously compared against physical reality. For a detailed technical walkthrough of CAD-to-USD workflows, see NVIDIA's guide on Building CAD to USD Workflows with NVIDIA Omniverse.
How 4D Pipeline Can Help
At 4D Pipeline, we help teams optimize visualization pipelines across enterprise, industrial, and fashion-tech projects, regardless of whether you're working with CAD, photogrammetry, LiDAR, or mixed-source data. We guide you through the complexity of aligning different data types, managing material translation between formats, and implementing level-of-detail strategies that actually work in production. Whether you're evaluating OpenUSD adoption for hybrid digital twins, building real-time inspection workflows, or streamlining cross-platform pipelines, we combine deep technical knowledge with hands-on feasibility studies across your specific toolchain, giving you a clear path from proof-of-concept to production-ready solutions.
Let's Connect:
What's Next

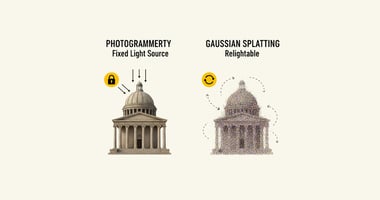

As powerful as photogrammetry is, it remains bound by one fundamental constraint: it captures what light looked like at the time of acquisition, not how light behaves in the real world. The resulting 3D model looks strikingly real, so long as you view it under the same lighting conditions as the original scene. But because lighting and shadows are baked into the texture, the model cannot be convincingly re-lit.
This is the static scene problem, and it's what motivates the next generation of reconstruction methods.
Modern techniques like Neural Radiance Fields (NeRFs) and 3D Gaussian Splatting address this limitation by learning a continuous model of radiance: how light is emitted or reflected in every direction at every point in space. Instead of fixing a texture, they approximate the underlying physics of light transport, enabling dynamic relighting and view-dependent rendering.
In our next article, we'll explore how these neural methods work in practice, comparing photogrammetry with NeRFs and Gaussian Splatting to understand when to use each approach in production workflows.
About this series: This is Part 1 of a multi-part exploration of 3D reconstruction methods, from classical photogrammetry through neural radiance fields to Gaussian Splatting. Each article builds on the last, tracing the evolution from geometry-first to learning-first approaches to capturing reality.
